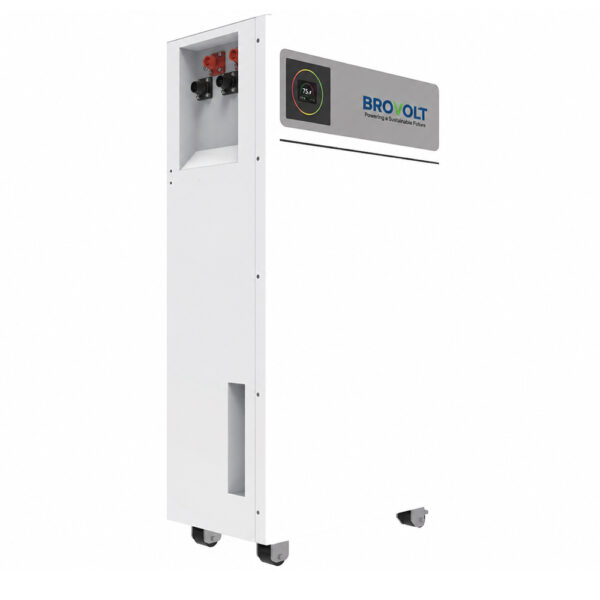

The Brovolt BV-2000 is a 51.2V LiFePO4 battery delivering 20.07kWh capacity and 18.06kWh usable energy. Its floor standing design features IP65 protection, RS485/CAN communication and support for up to 16 units in parallel.
| Battery Type | LiFePO₄ |
|---|---|
| Battery Capacity per Kit [Wh] | 20.07 kWh |
| Rated Voltage [V] | 51.2 V |
| Usable Energy [Wh] | 18.06 kWh |
| Voltage Range [V] | 44.8–57.6 V |
| Max. Charging and Discharging Rate | 0.5C |
| Max. Charging and Discharging Current | 200 A |
| Depth of Discharge [DOD] | ≤90% |
| Cycle Life (25°C, 0.5C) | ≥6,000 cycles at 80% DOD, with ≥80% capacity retention (EOL) |
| Scalability (Parallel) | Max. 16 Parallel |
| Communication Mode | RS485/CAN2.0 |
| Operating Temperature Range | 0–50°C (Charge) / -10–55°C (Discharge) |
| Storage Temperature Range | -15–60°C |
| Cooling Method | Natural Convection |
| Altitude | ≤3,000 m |
| Ambient Humidity | 20–95% non-condensing |
| Noise [dBA] | <25 |
| Ingress Protection | IP65 |
| Dimensions [H×W×D] | TBD |
| Weight | TBD |
| Installation Methods | Floor Standing |
