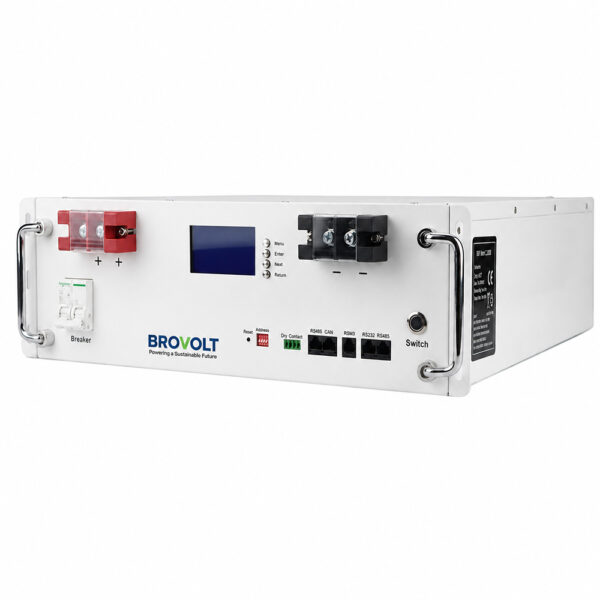

The Brovolt BVW51100 is a 51.2V 100Ah LiFePO4 rack-mount battery with 5.12kWh capacity and 96% round-trip efficiency. Designed for a 10-year service life, it features CAN/RS485 communication and supports up to 15 units in parallel.
| Model | BVW51100 |
|---|---|
| Cell Type | LiFePO4 |
| Nominal Volatge | 51.2V |
| Nominal Capacity | 100Ah |
| Nominal Energy | 5.12kWh |
| Configuration | 16S1P |
| Charge Voltage | 58.4V |
| Charge Cut-off Voltage | 58.4V |
| Discharge Cut-off Voltage | 43.2V |
| Max. Charge Current | 100A |
| Max. Discharge Current | 100A |
| Design Life | 10 years |
| Round-trip Efficiency | 96% |
| Discharge Temperature | -20°C ~ 50°C |
| Charge Temperature | 0°C ~ 50°C |
| Cycle Life | ≥6000, 25±2°C, 0.2C, DOD 80% |
| Protection Class | IP20 |
| Relative Humidity | 5%–95% |
| Installation Mode | Rack-mount |
| Weight | 45kg |
| Dimension | 470×442×154mm |
| Scalability | Max. 15 in parallel |
| Communication | CAN/RS484 |
