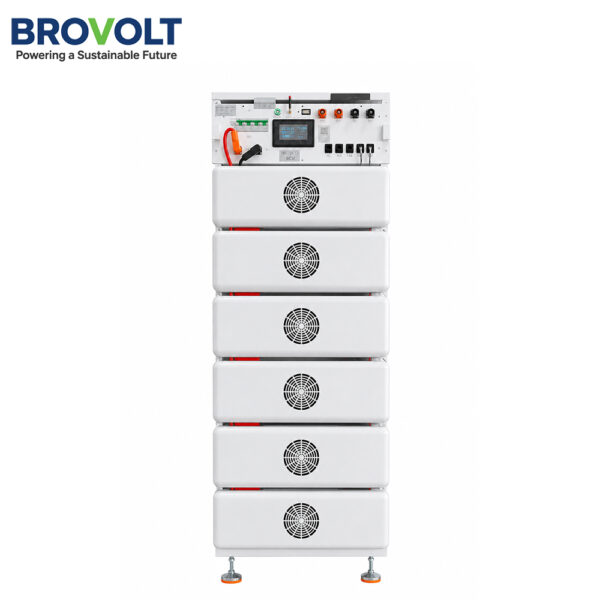

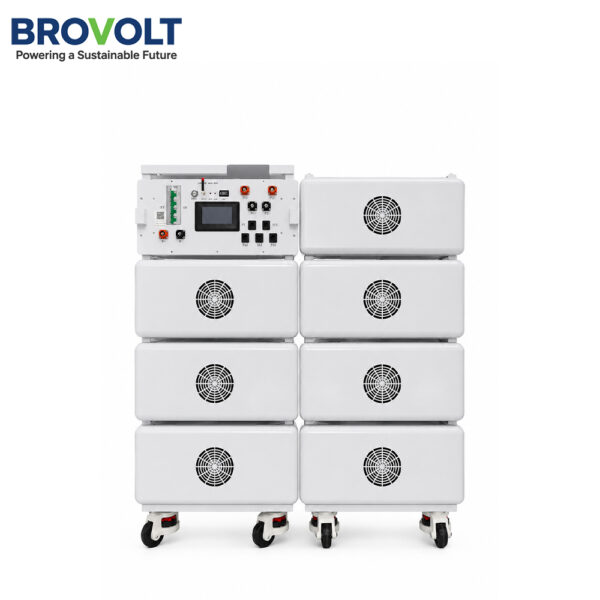

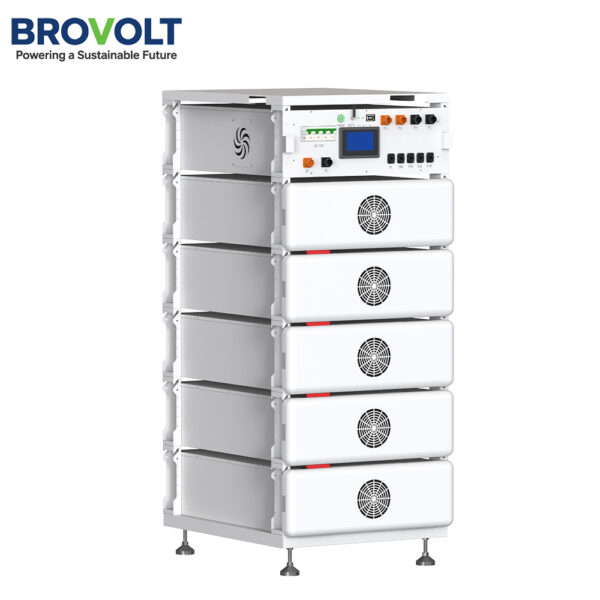

Brovolt BV-HV76.8V314Ah is a modular high-voltage LiFePO4 energy storage system offering 96.46–265.27 kWh with 4–11 battery modules. Designed for solar and backup applications, it features 90% depth of discharge and CAN/RS485 communication.
| Model | BV-HV76.8V314Ah |
|---|---|
| Cell Chemistry | LiFePO4 |
| Module Energy (kWh) | 24.12 |
| Module Nominal Voltage (V) | 76.8 |
| Module Capacity (Ah) | 314 |
| Module Dimension (W/D/H, mm) | 440 × 1063 × 242 |
| Module Weight Approximate (kg) | 177 |
| Charge/Discharge Current (A) | Recommended: 160; Max: 200 |
| Working Temperature (°C) | -20–60 |
| Cooling Mode | Air Conditioner + Fan Cooling |
| Communication Port | CAN, RS485 |
| Humidity | 5%–85% RH |
| Altitude | <2000 m |
| IP Rating of Enclosure | IP54 |

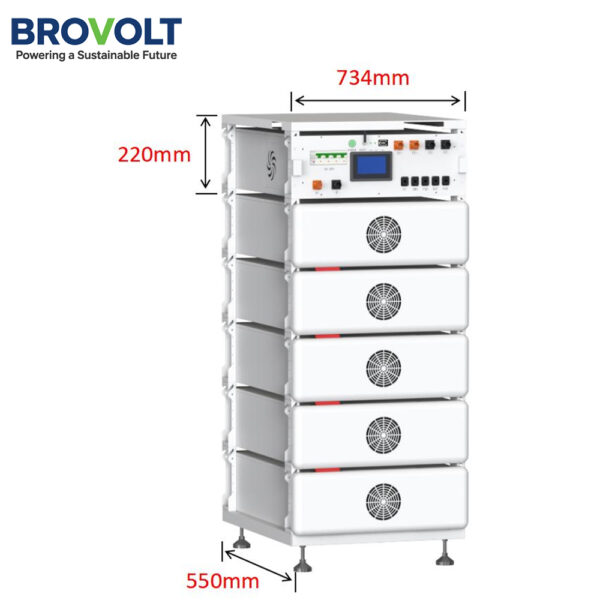

| Dimension (W/D/H, mm) | 1271 × 1530 × 2120 |
| Installation Location | Integrated Cabinet Installation |
| Storage Temperature (°C) | 0–35 |
| Recommended Depth of Discharge | 90% |
| Certification | CE, UN38.3, MSDS |
| Cycle Life | ≥8000 times |
| Warranty | 5+5 years |
| Note | The current is affected by temperature and SOC |
