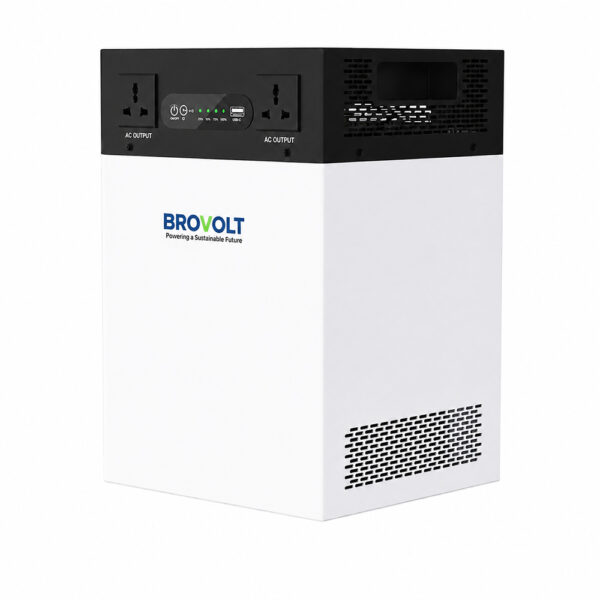

Power everyday essentials with the Brovolt 2009.6Wh lithium battery power station. Featuring 1000W pure sine wave output, 550W MPPT solar charging and UPS switching within 20ms, it supports home backup and off-grid power needs.
| Input Mode | Single-phase two-wire (L/N) |
|---|---|
| Output Voltage Waveform | Pure sine wave |
| Frequency Range | 45~65Hz |
| AC Charging Power | 1000W MAX |
| AC Inlet | 3-pin AC inlet (covered), male*1 |
| Nominal Photovoltaic Voltage | 38V |
| Maximum Current | 15A |
| Maximum Power (MPPT) | 550W |
| Input Port | XT90E-M (with cover)*1 |
| Rated Frequency | 50Hz±0.5% |
| Total Harmonic Distortion (THD) | <3% (linear) / <5% (nonlinear) |
| Power Factor | ≥0.99 |
| Full Load Power | 1000W |
| UPS Switching Time | ≤20ms |
| Maximum Inverter Efficiency | 90% |
| Output Port | Schuko (European standard) socket*2 |
| Output Mode | 5V |
| Output Current | 1A |
| Maximum Output Power | 5W Max. |
| THD Output Port | USB*1 |
| Rated Voltage | 6.4V |
| Voltage Range | 5.8~7.3V |
| Typical Capacity | 314Ah*2 |
| Capacity | 2009.6Wh |
| Maximum Charging Current | 160A |
| Maximum Charging Power | 1000W |
| Undervoltage/Overvoltage Protection | Yes |
| Short Circuit Protection | Yes |
| Over-temperature Protection | Yes |
| LED Indicator Light | 4 SOC power indicators, 1 working status indicator |
| LED Power Indicator | 25/50/75/100% |
| Operating Temperature | −10°C~50°C |
| Storage Temperature | −15°C~60°C |
| Humidity | 20%~95% RH (Non-condensing) |
| Altitude | ≤3000m, >3000m derating 1% per 100m |
| Noise | <40dB (1 meter) |
| Product Dimensions | 240*225*355 mm |
| Packaging Dimensions | 295*275*453 mm |
| Net Weight | 19.0kg |
| Gross Weight | 20.0kg |
