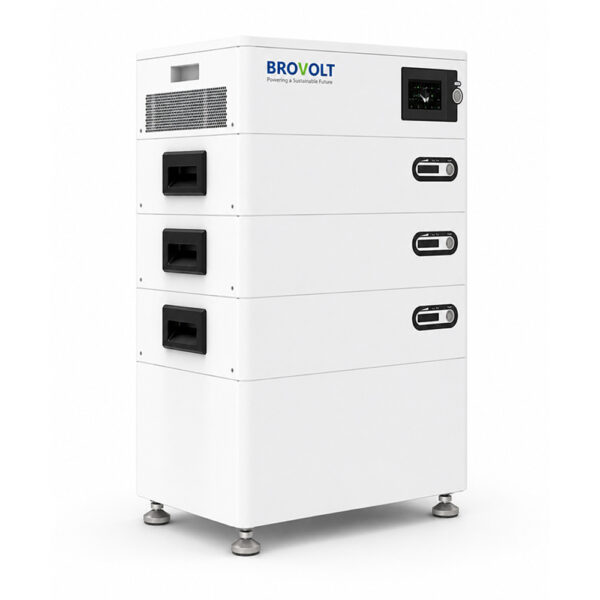

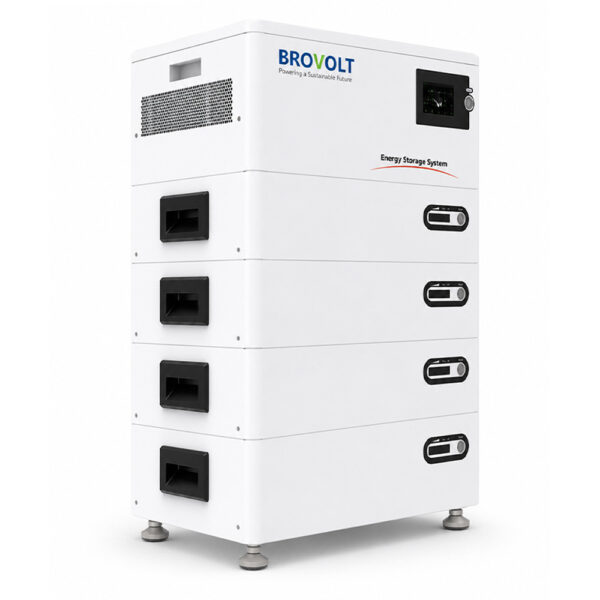

Brovolt’s stackable ESS combines LiFePO4 batteries with an integrated inverter. Choose 5, 10 or 15 kW output and 5.12–40.96 kWh storage capacity, with pure sine wave output, solar charging and optional Wi-Fi connectivity.
| Model | BV-X-50 | BV-X-100 | BV-X-150 |
|---|---|---|---|
| Rated output power | 5000W | 10000W | 15000W |
| Output surge power | 10000W | 20000W | 30000W |
| Max. output current | 22.7A | 45.4A | 22.7/phase |
| Rated output voltage | 208/220/230/240Vac±5% | 208/220/230/240Vac±5% | 220/380, 230/400, 240/415Vac±5% |
| Rated frequency | 50/60Hz±1% | 50/60Hz±1% | 50/60Hz±1% |
| THDv | <3% | <3% | <3% |
| Output wave | Pure Sine Wave | Pure Sine Wave | Pure Sine Wave |
| Output type | Pluggable connector | Pluggable connector | Pluggable connector |
| AC input voltage range | APL Mode: 154~264Vac / UPS Mode: 185~264Vac | APL Mode: 154~264Vac / UPS Mode: 185~264Vac | APL Mode: 154~264Vac / UPS Mode: 185~264Vac |
| AC input frequency | 50/60Hz (Auto Adaptive) | 50/60Hz (Auto Adaptive) | 50/60Hz (Auto Adaptive) |
| AC Input sources | L+N+PE | L+N+PE | L1+L2+L3+N+PE |
| Max. PV power (Recommended) | 5500W | 5500W×2 | 5500W×3 |
| Max. PV Input Voltage | 450V | 450V | 450V |
| MPPT voltage range | 120~430V | 120~430V | 120~430V |
| Max charge current (Battery) | 80A | 160A | 240A |
| Cooling strategy | Fan | Fan | Fan |
| Weight | 14kg | 28kg | 38kg |
| Dimension [W×H×D] | 620×170.5×365mm | 620×207×365mm | 620×298.5×365mm |
