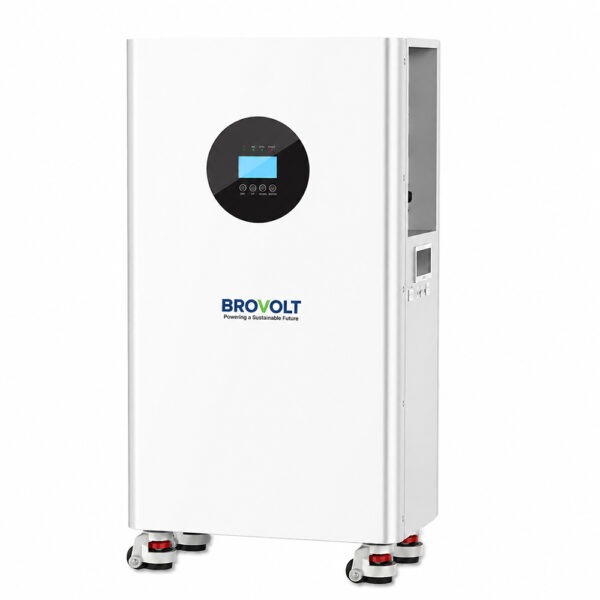

Power your home with Brovolt’s 8 kWh lithium energy storage system. Featuring 3.6 kW pure sine wave output, MPPT solar charging, 10 ms transfer time and WiFi monitoring, it supports solar energy storage and backup power in a compact, wheeled design.
| Rated Input Voltage | 208 / 220 / 230 / 240Vac; L + N + PE |
|---|---|
| Voltage Range | 90~280Vac±3V (normal mode); |
| Rated Capacity | 3.6KW |
| Peak Power | 5.7KVA |
| Voltage | 208 / 220 / 230 / 240Vac |
| Power Factor | 1 |
| Frequency | 50/60Hz±0.1% |
| Switch Time | 10ms |
| Wave Form | Pure sine wave |
| Overload Capacity (Battery Mode) | 60s@102%~110%; 10s@110%~130%; |
| Max. Efficiency (Battery Mode) | 92.7%@24VDC |
| Nominal Battery Voltage | 25.6Vdc |
| Rated Energy | 8KWh (0.2C, 25°C) |
| Usable Energy (90% DOD) | 8KWh |
| Max. Charge/Discharge Current | 75A/150A |
| Operating Voltage Range | 20Vdc ~ 29.2Vdc |
| Solar Charger Type | MPPT |
| Max. PV Input Current / Power | 18A / 5000W |
| Operating Range | 40~450Vdc |
| Max. PV Open Circuit Voltage | 500Vdc |
| Max. PV Charge Current | 100A |
| Max. AC Charge Current | 100A |
| Max. Charge Current (PV + AC) | 100A |
| Display | LCD |
| Communication | USB |
| Monitoring | WiFi |
| Ingress Protection | IP20 |
| Operating Temperature | -10°C ~ 50°C |
| Relative Humidity | 5% ~ 95% (Non-condensing) |
| Storage Temperature | -15°C ~ 60°C |
| Max. Operating Altitude | 4000m (1000m above 1000m) |
| Products Size | 440×246×760mm |
| Package Size | 520×436×890mm |
| Net Weight | 61kg |
| Gross Weight | 65kg |
