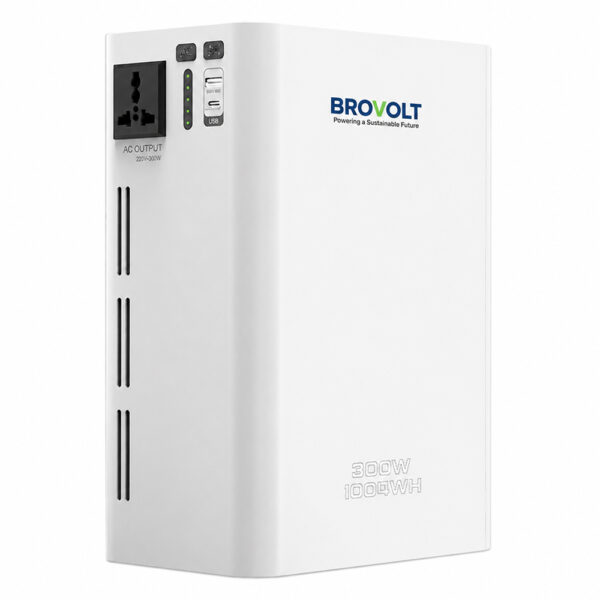

The Brovolt 300W portable power station delivers 1004Wh of dependable energy with pure sine wave AC output, solar and AC charging, USB power, UPS switching and multiple safety protections—ideal for home backup, travel and outdoor use.
| Input Mode | Single-phase two-wire (L/N) |
|---|---|
| Output Voltage Waveform | Pure sine wave |
| Frequency Range | 45～65Hz |
| AC Charging Power | 300W MAX |
| AC Inlet | 3-pin AC inlet (covered), male*1 |
| Nominal Photovoltaic Voltage | 30V |
| Maximum Current | 10A |
| Maximum Power (MPPT) | 300W |
| Input Port | XT90E-M (with cover)*1 |
| Rated Frequency | 50Hz±0.5% |
| Total Harmonic Distortion (THD) | <3% (linear) / <5% (nonlinear) |
| Power Factor | ≥0.99 |
| Full Load Power | 300W |
| UPS Switching Time | <20ms |
| Maximum Inverter Efficiency | 88% |
| Output Port | Schuko (European standard) socket*1 |
| Output Mode | 5V |
| Output Current | 3A |
| Maximum Output Power | 15W Max. |
| THD Output Port | USB*1 |
| Rated Voltage | 3.2V |
| Voltage Range | 2.9～3.65V |
| Typical Capacity | 314Ah |
| Capacity | 1004Wh |
| Maximum Charging Current | 140A |
| Maximum Charging Power | 300W |
| Undervoltage/Overvoltage Protection | Yes |
| Short Circuit Protection | Yes |
| Over-temperature Protection | Yes |
| LED Indicator Light | 4 SOC power indicators, 1 working status indicator |
| LED Power Indicator | 25/50/75/100% |
| Operating Temperature | -10℃～50℃ |
| Storage Temperature | -15℃～60℃ |
| Humidity | 20%～95% RH (Non-condensing) |
| Altitude | ≤3000m, >3000m de |
| Noise | <40dB (1 meter) |
| Product Dimensions | 194×129×280 mm |
