Transformer Inrush: Sizing Grid-Forming BESS for Energization

Transformer energization is primarily a current-and-control problem, not a battery-duration problem. This guide shows how to size the PCS, choose a voltage ramp, model residual flux, and verify a grid-forming BESS before black-start commissioning.

A transformer might be unloaded and still demand a fierce burst of magnetizing current, while the grid-forming inverter anticipated to stimulate it is deliberately developed to top existing within a slim, semiconductor-safe envelope.

So why do so lots of BESS specifications start with megawatt-hours?

That is backwards.

For transformer energization, the first sizing battle is fought in amperes, volt-amperes, control saturation, and milliseconds. Battery energy becomes vital later on, when the BESS should hold station auxiliaries, get motor loads, support the cranking path, and stay offered for duplicated restoration attempts.

My blunt view is that a BESS can not be called black-start qualified just due to the fact that its inverter has a “grid-forming mode.” Unless the supplier can demonstrate transformer versions, current-limiter behavior, voltage-ramp controls, defense control, and a qualified energization series in electromagnetic transient simulation, the claim is advertising– not engineering.

How BESS Can Defer Transformer Upgrades and Release Capacity

Why Transformer Inrush Current Rewrites BESS Sizing

Transformer inrush present appears when energization drives the magnetic core past its regular flux area and into saturation. Breaker closing angle issues. Recurring flux issues greater than lots of usefulness research studies confess. Core building, winding link, system resistance, cord charging and resource rigidity all alter the result.

A synchronous generator might tolerate or feed several multiples of ranked current for a restricted period. A grid-forming inverter typically can not. Released researches describe inverter overcurrent capability of about 1.5 per unit for short intervals, while a 2024 black-start design utilized a 40 MVA grid-forming inverter with a 1.2 per-unit existing limit.

That space modifications whatever.

When the inverter reaches its existing ceiling, it does not end up being a smaller synchronous maker. The control system alters state. Voltage referrals may be reduced, present commands might be clipped, online insusceptibility might turn on, and the outer grid-forming loop might momentarily shed the behavior assumed in a simple RMS research study.

The result can be:

  • Slow or stopped working voltage establishment
  • Sustained transformer saturation
  • High 2nd- or third-harmonic web content
  • Differential or overcurrent relay misoperation
  • DC-link anxiety
  • Control oscillation
  • A broke down black-start island

A research study of multiple-transformer energization located that regulated switching can require a 56.8 MVA optimal from a resource rated at just 15 MVA under an undesirable residual-flux problem. That is not a tiny style margin. It is a failed architecture.

The Hard Truth: MW and MWh Are Inadequate

Grid-forming BESS sizing contends the very least 4 separate measurements:

  1. computers continuous power, in MW or MVA
  2. PCS short-duration phase-current ability, consisting of duration and recuperation
  3. Battery power, in MWh, across the total restoration sequence
  4. Control capability, including soft energization, existing restricting and secure procedure at reduced voltage

The nameplate can misguide.

A 20 MW/40 MWh BESS appears considerable. Yet expect its PCS can offer only 1.2 per-unit current, its existing limiter breaks down voltage under hefty magnetizing need, and its grid-forming firmware can not ramp an already-connected cranking path from zero volts. That plant might be outstanding for arbitrage and frequency response yet useless for the desired transformer energization.

Present wins first.

Battery period still matters, however magnetizing inrush generally lasts seconds as opposed to hours. The bigger energy requirement originates from what happens around it: HVAC, fire systems, control power, pumps, auxiliary transformers, interactions, pre-charge losses, repeated attempts, standing losses and the first blocks of vital lots.

I therefore separate the study into two envelopes:

The energization envelope establishes PCS existing, MVA, ramp price and control setups.

The reconstruction envelope identifies battery MWh, state-of-charge get and permissible series duration.

Mixing the two right into one “called for BESS capacity” figure hides the real traffic jam.

What Really Happens Throughout Transformer Energization

The core flux is about proportional to the moment important of used voltage. Under steady-state sinusoidal operation, favorable and adverse volt-seconds balance. Throughout unchecked energization, the preliminary voltage angle and entraped residual change might press the initial flux expedition much past its normal in proportion value.

The core saturates.

Magnetizing inductance then drops dramatically. Present increases. Because the waveform is crooked, the existing includes a big worn out DC part and solid harmonics.

Recurring change can not be dealt with as an ornamental sensitivity instance. One released network study made use of phase residual-flux mixes consisting of 0.8, 0 and − 0.8 each. Under controlled changing, the first transformer ended up being the energization traffic jam; accurate independent-pole changing on the other transformers produced virtually absolutely no inrush, but the three-pole device did not.

And here is the awkward component: area residual change is seldom known completely.

A functional research study must check:

  • Maximum positive and negative recurring change on each stage
  • Worst breaker closing angles
  • Breaker post scatter and mechanical delay
  • Transformer saturation-curve unpredictability
  • Minimum and maximum system regularity
  • Cold and hot winding resistance
  • Minimum DC voltage and reduced state of charge
  • One PCS block not available
  • Complementary transformers currently linked
  • Wire and shunt-reactor energization
  • Repeated energization after an aborted attempt

Versions can lie.

An RMS design can show acceptable voltage since it averages away the asymmetric stage present and magnetic saturation that trigger the real event. For this task, the main decision model must be an emergency medical technician platform such as PSCAD, EMTP or an equivalently validated short-term simulation setting.

Just how to Size a Grid-Forming BESS for Transformer Energization

I use the following series since it compels the job team to reveal weak presumptions early.

Define the real cranking course

Do not design only the headline transformer.

Document every asset that will certainly be attached prior to the BESS raises voltage:

  • computers step-up transformers
  • Key generator or terminal transformers
  • Medium-voltage cords
  • Instrument transformers
  • Earthing transformers
  • Shunt reactors
  • Complementary transformers
  • Harmonic filters
  • Fixed and electric motor lots

Soft energization may need breakers along the designated path to be closed prior to the voltage ramp begins. That means a number of transformers can be allured simultaneously, not sequentially.

Acquire usable OEM limitations

Request for more than “150% overload.”

The needed information consist of:

  • Optimum phase existing in RMS amperes
  • Allowed overload duration
  • Repeating and cool-down restrictions
  • Present limit at minimal DC voltage
  • Temperature derating
  • Reactive-current priority
  • Modulation restriction
  • Current-limiter block layout
  • Actions during favorable- and negative-sequence imbalance
  • Recovery reasoning after saturation
  • Grid-forming security while the limiter is energetic

A 1.5-per-unit limit for 100 milliseconds is not equivalent to 1.5 each for ten secs. Yet tender files routinely treat them as compatible.

Build nonlinear transformer designs

Use project-specific examination data where possible:

  • Saturation contour
  • Core kind
  • Air-core reactance
  • No-load losses
  • Winding resistance and leakage reactance
  • Vector group
  • Zero-sequence course
  • Residual-flux presumptions
  • Hysteresis depiction when supported

A generic transformer library block might be acceptable for testing. It is not nearly enough for last security or black-start acceptance.

Run a repetitive PCS-sizing computation

A valuable first-pass screening formula is:

[S \ geq. \ frac \ sqrt 3, V LL, I \ message EMT, max k ; k \ text; k \ text ] Where:

  • ( V _ ) is the relevant line-to-line voltage
  • ( I _ \ text ) is the maximum EMT-derived stage RMS present
  • ( k _ \ text ) is the confirmed short-duration overcurrent multiplier
  • ( k _ \ message derate) covers temperature, DC voltage and operating conditions
  • ( k _ ) represents the needed module-outage or redundancy problem

This is a screening formula, not a replacement for simulation. It also needs to not utilize instant present height in place of the OEM’s RMS existing meaning.

Then repeat.

A published multiple-transformer instance discovered that a 20 MVA inverter could support a three-second soft-energization ramp, a 15 MVA inverter required about 8 secs, and a 10 MVA inverter required at the very least 15 secs. With a steeper assumed saturation characteristic, the called for ramp times increased to 8, 12 and 22 seconds respectively.

That outcome lugs a hard lesson: ramp period and PCS MVA are tradeable just within the transformer and control system’s genuine operating limitations.

Dimension the battery energy individually

Determine the black-start power demand as:

[E =. \ frac \ int P \ message (t), dt< ]

After that divide by the useful state-of-charge window, not the nominal battery energy.

Consist of:

  • BESS auxiliary consumption
  • Transformer and cord losses
  • Station-service tons
  • Motor-starting energy
  • Remediation waiting durations
  • Synchronization hold-ups
  • Duplicated attempts
  • Minimum post-restoration book
  • Battery destruction and temperature level results

The inrush occasion might barely relocate state of charge. A 45-minute delay waiting on one more plant to integrate certainly will.

How BESS Can Defer Transformer Upgrades and Release Capacity

Soft Energization Versus the Alternatives

Soft energization is frequently the strongest alternative for a grid-forming inverter due to the fact that it utilizes a capability the converter already possesses: controlled voltage formation.

Yet it is not magic.

Energization techniqueKey requirementKey advantageConcealed weaknessEffect on BESS sizing
Difficult changingBreaker shuts onto small voltageEasy seriesSerious inrush, existing restricting and voltage distortionOften needs extreme computer present
Three-pole regulated changingPoint-on-wave controller and residual-flux estimateCan reduce inrush without a slow voltage rampOne closing immediate can not individually optimize all stagesCalls for sensitivity to post scatter and change error
Independent-pole switchingThree independently operated polesCan come close to minimum inrush on each phaseSpecialized breaker, measurements and upkeep burdenMay decrease PCS oversizing
Pre-insertion resistorResistor-equipped breaker and bypass sequenceIncludes physical dampingExpense, impact, losses and changing complexityReduces existing however adds equipment
Soft energizationGrid-forming voltage ramp and shut cranking courseUses converter control to restrict flux counteredSynchronised property energization and voltage-management problemsTrades longer ramp time for lower PCS MVA
Current-limiter-assisted energizationRapid, stable inverter current-reference limitingShields semiconductors during unforeseen demandMay lengthen saturation or distort voltageRequires comprehensive OEM control version

AEMO has recorded soft energization as a technique in which system voltage is ramped slowly to limit transformer inrush and harmonics. Its Dalrymple case could black-start a local 33 kV distribution area making use of that strategy, although the ability had not after that been verified across a bigger network.

Soft start lowers risk. It does not remove it.

Long ramps can create their own issues: transformer overfluxing if volts-per-hertz control is mishandled, long term low-voltage direct exposure, protection pickup, complementary contactor babble, unstable load electronic devices and inadequate control with tools that anticipates a tidy action to nominal voltage.

What 2023– 2024 Proof Really Shows

Dalrymple: area habits, not a PowerPoint assurance

The Dalrymple Energy Storage Space for Commercial Renewable Assimilation project in South Australia utilizes a 30 MVA/8 MWh grid-forming BESS attached near completion of a 132 kV radial line. Earlier functional reporting discovered that it decreased local loss of supply from concerning eight hours to 30 minutes during its very first six months.

Extra tellingly, AEMO reviewed four occasions from December 28, 2023, when lightning caused the upstream 132 kV line to trip. The BESS maintained islanded procedure with the Wattle Point Wind Ranch and regional tons, then sustained resynchronization to the main system. AEMO likewise located practical alignment in between high-resolution area measurements and its simulation design, while acknowledging frequency-model disparities.

That last detail matters. Actual information did not match the model perfectly.

It hardly ever does.

The correct feedback is not to abandon modeling; it is to demand design recognition, parameter disclosure and appointing dimensions.

NREL: a 1 MW/1 MWh equipment presentation

A 2024 NREL-led research made use of a genuine 1 MW/1 MWh BESS at the Flatirons School, scaled in power-hardware-in-the-loop testing to stand for a 500 kW source. The experiment evaluated support for a 5.5 MVA run-of-river hydropower plant and included a 3 MVA load financial institution.

When the grid-forming BESS was positioned near the vital lots and integrated with the hydro-formed island, one designed running condition attained a 59.93 Hz frequency nadir with zero-second settling time. The research additionally reported that voltage-ramp soft starting minimized transformer inrush and that regulated BESS synchronization lessened disruption to the simultaneous generator.

This does not show every commercial BESS can carry out the obligation. It verifies the idea can function when place, controls, sequencing and system studies are straightened.

A 40 MVA inverter does not behave like a 40 MVA generator

A 2024 black-start research study contrasted a 40 MVA grid-forming inverter, restricted to 1.2 per-unit existing, against a 40 MVA concurrent generator while stimulating transformer and motor loads. The modeled cranking course consisted of a 40 MVA medium-voltage transformer, an 80 MVA step-up transformer and a 280 MVA transformer farther right into the series.

The grid-forming inverter’s first-cycle inrush amplitude was approximately 50% lower than the generator’s, however the inverter situation showed more sustained inrush and relentless third-harmonic actions. The writers ended that thorough transformer magnetization designs and existing restricting were needed to avoid inverter overcurrent and security troubles.

This is the finding purchase teams tend to miss: a reduced initial top does not automatically suggest a less complicated energization.

Duration matters. Harmonics matter. Limiter behavior issues.

The system-level scale is expanding

NREL’s 2024 Puerto Rico energy-system evaluation approximated that 300 MW to 800 MW of battery storage with grid-forming, fast-frequency-response and voltage-control capabilities would be required in the near term to minimize huge frequency inconsistencies and add to black beginning and grid recovery.

Those numbers are not a transformer-inrush sizing rule. They reveal why transformer energization is relocating from an expert black-start topic right into mainstream BESS purchase.

A Practical Grid-Forming BESS Sizing Matrix

Layout concernMinimum inputResearch study resultDecline the style when
Can the PCS allure the transformer?Saturation curve, residual flux, source impedance, breaker timingOptimum phase RMS and peak presentLimiter continues to be energetic without stable voltage recuperation
Is PCS MVA adequate?Emergency medical technician apparent-power trace and verified overload contourCalled for PCS blocks and redundancyA single inaccessible block creates failing
Is the voltage ramp acceptable?Transformer flux, security and tools undervoltage restrictionsMinimum safe ramp timeRamp goes against defense or tools ride-through
Is battery energy sufficient?Full reconstruction timeline and supporting lotsMinimum beginning SOC and MWhOne fell short attempt removes the book
Will protection stay protected?Differential, overcurrent, harmonic restriction and CT modelsRelay operating marginsAny kind of reliable instance creates unwanted operation
Can the island continue to be secure?GFM control, tons pickup, cable billing and motor versionsFrequency, voltage and damping marginsCurrent saturation causes loss of grid-forming security
Is the design trustworthy?OEM emergency medical technician model and website measurementsRecognition reportSupplier materials only RMS or generic-library designs

My chosen purchase guideline is simple: no validated EMT version, no black-start conformity credit scores.

A prospective buyer ought to also demonstrate the full sequence with one PCS block unavailable, minimal allowable state of charge, minimal DC voltage and the worst qualified residual-flux pattern. Passing only the small case confirms almost absolutely nothing.

How BESS Can Defer Transformer Upgrades and Release Capacity

Defense and Control Failings That Sizing Spreadsheets Miss

Security is where stylish simulations fulfill expensive humiliation.

Transformer differential defense might see crooked magnetizing present and harmonic web content extremely in a different way when the source is a current-limited inverter. Standard harmonic restriction presumptions were established around traditional source behavior. A grid-forming converter can suppress the first peak while sustaining distorted current for longer.

The 2024 contrast research study discovered higher continual harmonics in the inverter instance and advised that existing protection schemes may need adjustment to prevent relay misoperation.

Review at least:

  • Differential restraint and blocking reasoning
  • Second- and fifth-harmonic limits
  • Stage and ground overcurrent
  • Negative-sequence defense
  • Volts-per-hertz protection
  • Undervoltage and underfrequency setups
  • Breaker-failure timing
  • PCS instant and thermal defense
  • DC undervoltage trips
  • Transformer neutral overcurrent
  • Synchronism-check reasoning

And do not allow the security designer get the emergency medical technician results 2 weeks prior to commissioning. The protection approach, inverter controls and energization sequence should be developed with each other.

Residential ESS Is Not a Grid-Forming Black-Start Plant

The phrase “battery storage” covers wildly various tools.

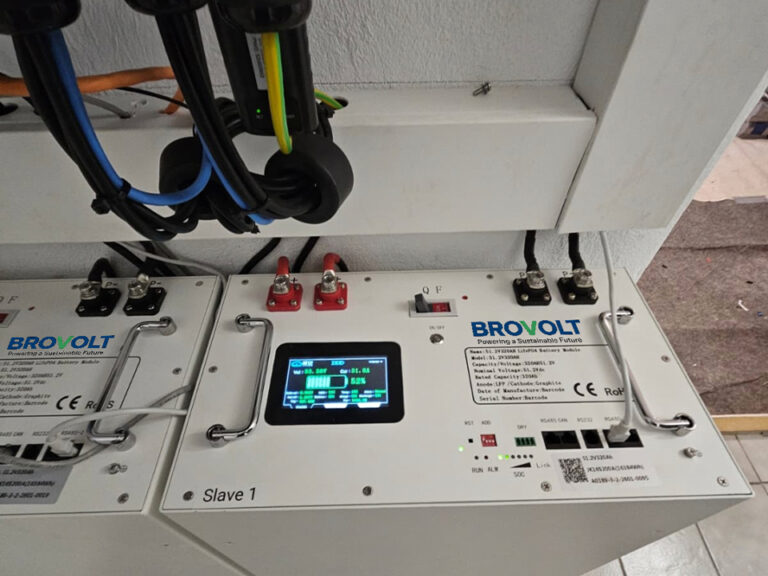

A 51.2 V 460Ah movable floor-standing solar storage space battery supplies around 23.55 kWh of small LiFePO four power and requires an outside inverter or computer. A 51.2 V 200Ah wall-mounted home ESS battery offers 10.24 kWh. Those serve energy specifications, but neither figure establishes transformer-energization performance.

The exact same difference puts on packaged systems. A 3.5 kW household planetary system with 15kWh battery storage or an 8kW residential solar PV package with 30kWh battery storage space is defined mostly by generation power and saved power. Energy transformer energization needs an additional layer totally: confirmed grid-forming controls, phase-current capacity, nonlinear transformer modeling, medium-voltage defense and black-start sequencing.

That does not make property storage space inferior. It makes the application various.

The chemistry may still be LiFePO FOUR, or (LiFePO_4). The design obligation is not from another location the same.

Regularly Asked Concerns

What is transformer inrush current in a grid-forming BESS?

Transformer inrush current is the short-duration, very uneven alluring existing attracted when an unloaded transformer is energized, specifically when breaker closing angle and recurring core change drive the magnetic core right into saturation, compeling a grid-forming inverter toward its existing limit and distorting terminal voltage.

Unlike a concurrent resource, the inverter can not supply unlimited fault-like existing. Its limiter transforms the voltage waveform and might extend the transient, so the study should consist of the actual grid-forming control and nonlinear transformer model.

How do you size a grid-forming BESS for transformer energization?

A grid-forming BESS must be sized from the worst-case EMT-derived phase current, apparent-power peak, voltage-recovery demand, current-limiter behavior, transformer recurring change, cable charging, complementary lots pick-up, and total black-start timeline– not from transformer MVA or battery energy ability alone alone.

The computer MVA and overcurrent envelope need to be iterated against voltage-ramp period. Battery MWh must then be computed from the total restoration sequence, including auxiliaries, waiting periods, losses, repeat attempts and minimal post-start book.

What is soft energization?

Soft energization is a grid-forming control technique that closes the desired cranking course while de-energized, after that elevates inverter voltage progressively from near no to nominal so transformer flux develops without the sudden countered that triggers serious saturation, inrush existing, harmonics, voltage collapse or protection trips.

The ramp needs to be enhanced, not thought. Published results reveal that needed ramp time adjustments considerably with PCS score, residual flux and transformer saturation characteristics.

Just how much overcurrent should a grid-forming inverter give?

Grid-forming inverters generally have actually a tightly bounded short-duration overcurrent ability specified by the OEM’s semiconductor, thermal, modulation and control limits; released researches commonly model limits around 1.2 to 1.5 each, far listed below the unconstrained transient existing a simultaneous source may provide.

The usable figure should specify RMS or peak measurement, duration, ambient temperature level, minimum DC voltage, repeating interval and whether the inverter can stay stably grid-forming while the limiter is active.

What is the most effective BESS sizing technique for transformer inrush?

The very best BESS sizing technique for transformer inrush is a repetitive EMT study that co-optimizes PCS MVA, usable existing limitation, voltage-ramp period, transformer magnetization designs, breaker sequence, defense settings and black-start power book across trustworthy residual-flux, temperature, state-of-charge and equipment-outage situations.

The last style ought to be confirmed via controller hardware-in-the-loop, power-hardware-in-the-loop or organized website screening. A solitary nominal RMS load-flow case is not evidence of energization capability.

Can a household LiFePO ₄ battery stimulate an energy transformer?

A property LiFePO four battery can support backup and solar self-consumption when coupled with a suitable inverter, however it ought to not be dealt with as an energy grid-forming BESS unless the complete computer, control firmware, protection, mistake feedback, black-start series, transformer design and accreditation plan demonstrate that ability.

Battery chemistry and nominal kilowatt-hours inform us just how power is stored. The inverter, transformer, controls and defense establish whether the system can develop a medium-voltage network without stumbling or shedding security.

Construct an Energization-Capable BESS, Not a Spread sheet BESS

The design concern is not, “How many megawatt-hours should we acquire?”

It is this:

Can the remaining computer blocks, at minimal DC voltage and worst residual flux, develop the complete cranking course without unsteady existing saturation, false protection operation or depletion of the black-start reserve?

That concern requires project transformer data, OEM grid-forming models, EMT sensitivity studies and a testable commissioning series.

Anything less is positive outlook with a battery enclosure.

Comment Form
